Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MUST/OEM, MUST/OEM
  • Model Number: PC1600A
  • Application: Solar System Controller
  • Rated Voltage: 48V
  • Maximum Current: 60A
  • Battery Nominal Volt: 12V/24V/48V auto work
  • Current: 45A 60A
  • Color: black, green, red
  • Charge mode: Multi-stage charging mode
  • Display: LCD+LED
  • radiating mode: Automatic cooling
  • Protection Function: PV array short circuit, PV reverse polarity, battery reverse polarity
  • Warranty: 12 Months
  • Item: solar battery charger

Packaging & Delivery

Packaging Details solar battery charger package: gift box and carton box
Delivery Time sample : 7days, container 25 workdays



45A 60A 12V 24V 36V 48V portable solar battery charger with Four stages charging mode



Product Description



Features of high efficiency solar battery charger

1. 45A/60A MPPT solar charge controller

2. PV input: 145V max

3. 12v/24v/36v/48v auto work

4. MPPT efficiency >99%, Peak conversion efficiency>98%

5. DSP processors architecture ensure high speed and performance

6. Four stages charging mode

7. Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, over charging, Output short circuit.



Pictures of solar battery charger





ModelPC16-4515APC16-6015A
Default Battery System Voltage12V/24V/36V/48VDC (adjustable)
CONTROLLER
INPUT
PV Open Circuit Voltage Range16V~100V for 12V battery system/32V~145V for 24V battery system/
48V~145V for 36V battery system/64V~145V for 48V battery system
Max PV Input Power(12V)600W800W
Max PV Input Power(24V)1200W1600W
Max PV Input Power(36V)1800W2400W
Max PV Input Power(48V)2400W3200W
BATTERYLimited charge voltage15.5~16.0VDC/31.0~32.0VDC/46.5~48.0VDC/62.0~64.0VDC
Equalizing charge voltage15.0~15.5VDC/30.0~31.0VDC/45.0~46.5VDC/60.0~62.0VDC
Boost charge voltage14.0~15.0VDC/28.0~30.0VDC/42.0~45.0VDC/56.0~60.0VDC
Float charge voltage13.2~14.0VDC/26.4~28.0VDC/39.6~42.0VDC/52.8~56.0VDC
Equalizing charge interval3~30day
Equalizing charge time1H~3H
Boost charge time1H~3H
DC
OUTPUT
Output Voltage9.8~16.0VDC/19.6~32.0VDC/29.4~48.0VDC/ 39.2~64.0VDC
Peak Conversion Efficiency98% (MPPT Efficiency 99%)
Max Charging Current45A60A
Warning for low voltage11.8VDC/23.6VDC/35.4VDC/47.2VDC(Adjustable)
Cutoff for low voltage9.8VDC/19.6 VDC/29.4VDC/39.2VDC(Adjustable)
Low voltage recovery12.0~13.0VDC/24.0~26.0 VDC/36.0~39.0VDC/48.0~52.0VDC(Adjustable)
GENERAL SPECIFICATIONCharge modeMPPT, PWM, constant current-constant voltage, function of automatic protection for storage battery
Radiating modeAir cooling
Working modeFour stage: Absorption CC, Absorption CV, Float CC, Float CV
Light controlled open voltage5V
Light controlled delay time5min
DISPLAY
&
PROTECTION
LED indicationSystematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection
LCD displayCharge voltage, charge current, voltage of storage battery, capacity of storage battery, output current
Alarm ProtectionsPV array short circuit, PV reverser polarity
Battery reverse polarity, Over charging protection
Output short circuit protection
Low voltage protection for storage battery
MECHANICAL
SPECIFICATIONS
MountingWall mount
W*H* D(mm)/G.W(kg)170*259*128mm/4.2kg170*289*128mm/4.8kg
OTHEREnvironmental RatingIndoor
Operation Temperature Range-35~45°C
Ambient humidity0~90% relative humidity(non-condensing)
Altitude3000m

 Item: 45A 60A 12V 24V 36V 48V portable solar battery charger with Four stages charging mode





Packaging & Shipping



Our Services

 Samples and OEM, Warranty and After-Sale Service:

  •  Welcome Solar Power Inverter Sample Test
  •  OEM Welcomed
  •  Warranty:1 Year
  •  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products failure in warrenty?
1. email us about PI number, serial number,Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.

In November, we will open a aftersales office in Pakistan Lahore, then we will open more and more office all over the world.



Company Information



Do you know MUST POWER LIMITED?

  •  Established in 1998, Headquarter in HongKong
  •  10-year Professional Factory Manufacturer in Shenzhen, China
  •  Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller,    Solar Battery, UPS
  •  Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.

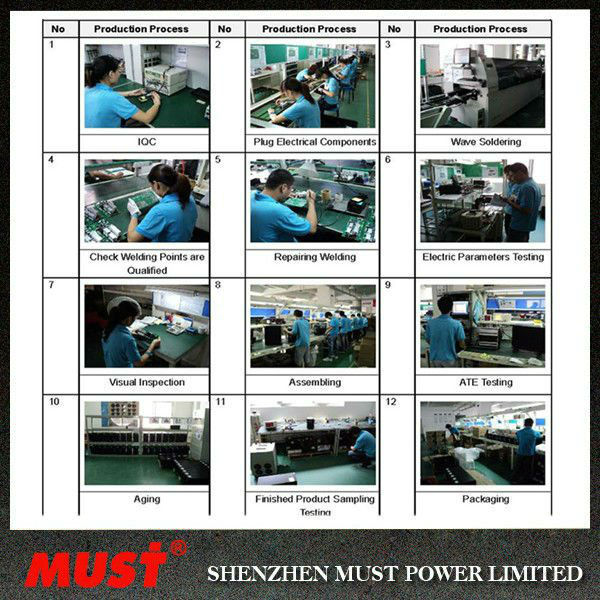

  • Four-Floor Factory Building, 10000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Two Teams of R & D.
  •  Certificate: ISO 9001, SGS Certificate, CE, etc
  •  6-Year Alibaba Gloden Supplier
Welcome to visit us:
Certification:

FAQ



Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

 Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

 Q3: How about the delivery time?

A3:  7 days for sample; 25 days for bulk order.

 Q4: What is the warranty of inverter?

A4: One year warranty on Must-Solar product.

 Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.







Welcome to contact us:
