Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MUST OEM
  • Model Number: EP3000 Pro 1-6KW
  • Output Power: 1 - 200KW
  • Output Type: Single
  • Size: 580*365*310mm
  • Weight: 30Kg
  • Input Voltage: 220V/230V/240V
  • Output Voltage: 220V/230V/240V
  • Type: DC/AC Inverters
  • Output Frequency: 50/60Hz Auto Sensing
  • Output Current: 30A AC Charge Current
  • Status Disaply: LCD
  • Frequency Type: Low Frequency
  • Output Waveform: Pure Sinewave
  • DC Voltage: 12V/24V/48V
  • Wide Frequency: 40-80Hz
  • Inverter Type: Off Grid Type
  • Protection: Overload & Short Circuit Protection
  • Power Range: 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
  • Whatsapp: Kunny. +86-136 327 52624
  • Skype: mustupsu

Packaging & Delivery

Packaging Details Cartons or wooden box, Or according to customer's need.
Packing siez:755*320*310mm(5KW), 1pc/carton
MUST POWER LIMITED
Kunny Wang
+86-136 327 52624
Skype:mustu

  MUST Factory Pure Sine wave 48v 24v 12v power supply inverter 3000w 5000w for home use solar system



Product Description

********ANY QUESTIONS, PLS FEEL FREE TO CONTACT !!!!******** Kunny

      WHATSAPP: 008613632752624         SKYPE: Kunny Wang        Wechat:wxk5013908

Product Details
Specification of the Power Inverter EP3000pro series
  1. Pure Sine Wave Output;
  2. Rated power 1kw to 6kw;
  3. 3 Times Surge Power;
  4. Wide Frequency 40Hz-80Hz;
  5. Conpiatible to generatot power;
  6. Overload & Short Circuit Protection;
  7. Smart battery charger design for optimized battery performance;
  8. Cold start function.
Product Link Sketch



Product Link Sketch



 Product for Home Installatian



Inverter $ Air Conditioner

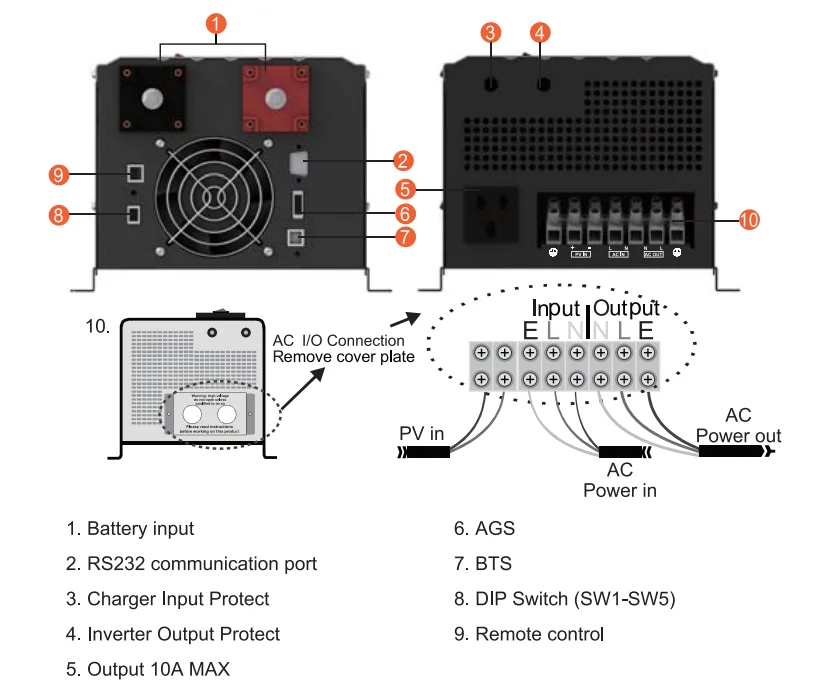

 Back Panel Display



  Back-ups Time



Product Parameters
  Product Parameter
MODELEP30-1KW  PROEP30 PRO-1.5KWEP30 PRO-2KW

EP30

 PRO-3KW

EP30 PRO-4KWEP30 PRO-5KWEP30 PRO-6KW

Default Battery

System Voltage

12VDC24VDC12VDC

24VDC

12VDC24VDC12VDC24VDC

48VDC

24VDC48VDC24VDC48VDC24VDC48VDC
INVERTER
OUTPUT
Reted Power1.0KW1.5KW2KW3KW4KW5KW6KW

Surge Rating

(20ms)

3.0KVA4.5KVA6.0KVA9.0KVA12KVA15KVA18KVA

Capable Of Starting

Electric

 Motor

1HP1HP1HP2HP3HP
WaveformPure sine wave/ same as input (bypass mode)

Nominal Output

Voltage RMS

100V/110V/120VAC  220V/230V/240VAC(±10% RMS)

220V/230V/240VAC

(±10% RMS)

Output Frequency5OHz/60Hz±0.3 Hz

Inverter Efficiency

(Peak)

>88%
Line Mode Efficiency>95%
Power Factor1.0

Typical Transfer

 Time

10ms(max)
10ms(max)
AC
INPUT
Voltage230VAC

Selectable Voltage

Range

96~132VAC  155~280VAC(For Personal Computers)
Frequency Range50Hz/60Hz (Auto sensing) 40~80Hz
BATTERY

Minimum

Start Voltage

10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, )


Low Battery Alarm10.5VDC±0.3V for12VDC mode (*2 for 24VDC, )


Low Battery Cutoff10.0VDC±0.3V for12VDC mode (*2 for 24VDC, )


High Voltage Alarm16.0VDC±0.3V for12VDC mode (*2 for 24VDC, )


High Battery

 Voltage Recover

15.5VDC±0.3V for12VDC mode (*2 for 24VDC, )


Idle Consumption-Search Mode<25W when power saver on


CHARGEROutput VoltageDepends on battery tvpe



Charger AC Input

 Breaker

Rrating

10A30A30A30A40A

Overcharge

 Protection

 S.D.

15.7VDC for 12VDC mode (*2 for 24VDC mode)


Maximum Charge

Current

35A20A45A25A65A35A75A45A30A65A35A70A40A75A50A

BYPASS
&
PROTECT

ION

Input Voltage

 Waveform

Sine wave (grid or generator)




Nominal Input

 Frequency

50Hz or 60Hz



Overload Protection

(SMPS Load)

Circuit breaker




Output Short Circuit

Protection

Circuit breaker




Bypass Breaker

 Rating

10A30A30A30A 40A
Max Bypass Current30Amp



SOLAR
CHARGER

Maximum PV

Charge

Current

50A
DC Voltage12V/24V/48

PWM Range @

 Operating

Voltage

15~80VDC

Maximum PV Array

Open

 Circuit

 Voltage

90VDC
Maximum Efficiency>97%

Standby Power

Consumption

<2W



MECHANI

CAL
SPECIFIC

ATIONS

MountingWall mount

Dimensions

 (W*H*D)

426*206*178 mm601*206*178

Net Weight

 (Solar CHG) kg

16.51721.1202624.524.838.235.845.24545.245

Shipping

Dimensions

(W*H*D)

570*335*300mm 750*335*300mm

Shipping Weight

 (Solar CHG) kg

19.32024.122.829.127.527.542.34049.549.349.549.3
OTHER

Operation

 Temperature

 Range

0°C to 40°C

Storage

 Temperature

-15°C to 60°C
Audible   Noise60dB MAX
DisplayLED+LCD

Standard

Warranty

1 year


Packaging & Shipping



  Product Packing

Why Choose Us
Must Company Information
Headquarter & Factory LocationIn HongKong & Shenzhen,Guangdong China Mainland
Industry Experience6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier
Product Range Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System
Main MarketAfrica, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.)
Factory8000 Square Meters, 220 workers
Department7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept.
Certificate
ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc
PatentSoftware Patent, Design Patent, Project Patent



                                  MUST Power Revenue Growth Increases Every Year

FAQ
Frequently Asked Questions:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  7 days for sample; 25 days for bulk order.



Q4: What is the warranty of inverter?

A4: One year warranty on Must-Solar product.



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
