Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MUST, MUST
  • Model Number: PV3500, PV3500
  • Output Power: 1 - 200KW
  • Output Type: Single
  • Size: 488*415*200mm
  • Weight: 40-70kgs
  • Input Voltage: 100v/110v/120v/220v/230v
  • Output Voltage: 100v/110v/120v/220v/230v
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz/60Hz
  • Output Current: 30A-100A
  • Place of origin: Guangdong, China
  • Display: LCD+LED display
  • Capacity: 1KW-36KW
  • MPPT max efficiency: 98%
  • Mounting: Wall Mount
  • Rated charge current: 100A
  • Rated voltage: 12/24/48VDC
  • Color: Red or Greem or OEM

Packaging & Delivery

Packaging Details Cartons or wooden box, Or according to customer's need.
Delivery Time Quick delivery for sample; 15-20days for order under 2,000pcs

Must Solar inverter PV3500 Series Off Grid Solar inverter DC AC Power Inverter 6000W

**************ANY QUESTIONS, PLS FEEL FREE TO ASK Kunny!!!!*****************

    WHATSAPP: 008613632752624       SKYPE: Kunny Wang 123     WECHAT:wxk5013908

Product Description
 Product Features:
  • Power range 4KW-12KW
  • 24/48VDC input voltage
  • Powerful charge rate up to 100Amp
  • Inbuilt pure copper transformer
  • Pure sine wave output
  • LED+LCD display
  • MPPT solar charge controller 60A/120A option
  • MPPT efficency max 98%
  • 50/60HZ automatic sensing
  • RS232 with free CD
  • Battery priority function
  • Automatically send signal to start generator
  • DC start&automatic self-diagnostic function
  • High efficiency design&"power saving mode"to conserve energy
 LCD Display Information:



Product Link Sketch




 Pictures of the Solar Inverter PV3500:

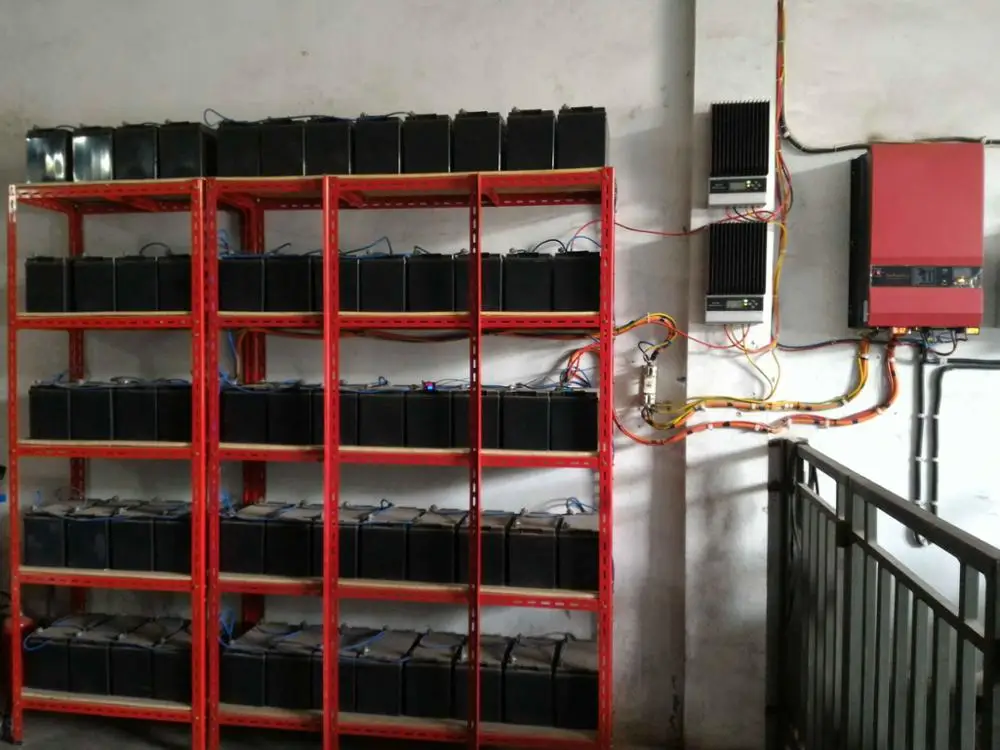

 Product for Home Installation:
Specifications



 Specification of the Solar Inverter PV3500 series
MODELPV35-5KWPV35-6KWPV35-8KWPV35-10KWPV35-12KW
Default Battery System Voltage24VDC48VDC24VDC48VDC24VDC48VDC48VDC48VDC
INVERTER
OUTPUT
Continuous output power4.0KW6KW8KW10KW12KW
Surge rating (20ms)12.0KW15.0KW18.0KW24.0KW30.0KW
Capable Of Starting Electric Motor2HP3HP3HP4HP5HP
Output waveformPure sine wave/ same as input (bypass mode)
Inverter Efficiency(Peak)>88%
Line mode efficiency>95%
Power factor0.8
Nominal output voltage RMS220V/230V/240VAC(±10% RMS)
Output frequency5OHz/60Hz±0.3 Hz
Short circuit protectionYes (1sec after fault)
Typical transfer time10ms(max)
10ms(max)
AC
INPUT
Voltage230VAC
Selectable Voltage Range155~280VAC(For Personal Computers)
Frequency Range50Hz/60Hz (Auto sensing) 40~80Hz
BATTERYMinimum start voltage20.OVDC/21.0VDC for24VDC mode (40.OVDC/42.0VDC for 48VDC mode)
Low battery alarm21.0VDC±0.3V for 24VDC mode (42.OVDC±0.6V  for 48VDC mode)
Low battery Cutoff20.0VDC±0.3V for 24VDC mode (40.OVDC±0.6V  for 48VDC mode)
High voltage alarm32.0VDC±0.3V for 24VDC mode (64.OVDC±0.6V  for 48VDC mode)
High battery voltage recover31.0VDC±0.3V for 24VDC mode (62.OVDC±0.6V  for 48VDC mode)
Idle consumption-search mode<25W when power saver on
CHARGEROutput voltageDepends on battery type
Charger AC input breaker rating30A30A30A40A50A
Max charge power rating1/3 Rating power
Overcharge protection S.D.31.4VDC for 24VDC mode (62.8VDC for 48VDC mode )
Maximum Charge Current65A35A65A40A65A50A70A80A
BTSContinuous output powerYes Variances in charging voltage & S.D. voltage base on the battery temperature
BYPASS
&
PROTECTION
Input voltage waveformSine wave (grid or generator)
Nominal voltage220V/230V/240VAC
Max input AC voltage300VAC for 230VAC HV mode
Nominal input frequency50Hz or 60Hz
Overload protection (SMPS load)Circuit breaker
Output short circuit protectionCircuit breaker
Bypass breaker rating40A40A40A50A63A
Max bypass current40Amp80Amp
Rated voltage24VDC/48VDC
PV open circuit voltageOperational max = 145VDC temperature corrected VOC
SOLAR
CHARGER
Maximum PV Charge Current60A60A(120A Optional)
DC Voltage24V/48V atuo work48V
Maximum PV Array Power1600W3200W1600W3200W1600W3200W3200W(6400W for 120A Optional)
MPPT Range @ Operating Voltage32~145VDC for 24V mode,64~145V for 48V mode 64~145VDC
Maximum PV Array Open Circuit Voltage147VDC147VDC
Maximum Efficiency>98%
Standby Power Consumption<2W
MECHANICAL
SPECIFICATIONS
MountingWall mount
Inverter dimensions (W*H*D)488*415*200mm588*415*200mm
Inverter weight (solar chg) KG38+2.548+2.549+2.560+2.566+2.5
Shipping dimensions(W*H*D)650*520*310mm750*520*310mm
Shipping weight (solar chg) KG40+2.550+2.551+2.562+2.568+2.5
OTHEROperation   Temperature  Range0°C to 40°C
Storage   Temperature -15°C to 60°C
Audible   Noise60dB MAX
DisplayLED+LCD
Standard warranty1 year
Packaging & Shipping
 Products Packing:

 Product Logistics & Payment Ways

Why Choose Us
Must Company Information
Headquarter & Factory LocationIn HongKong & Shenzhen,Guangdong China Mainland
Industry Experience6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier
Product Range Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System
Main MarketAfrica, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.)
Factory8000 Square Meters, 220 workers
Department7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept.
CertificateISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc
PatentSoftware Patent, Design Patent, Project Patent



                                  MUST Power Revenue Growth Increases Every Year
FAQ
Frequently Asked Questions:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  7 working days for sample; 25 working days for bulk order.



Q4: What is the warranty of inverter?

A4: One year warranty on Must-Solar product.



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Why not press the below "SEND" button to send us an email about your detail requirements?
